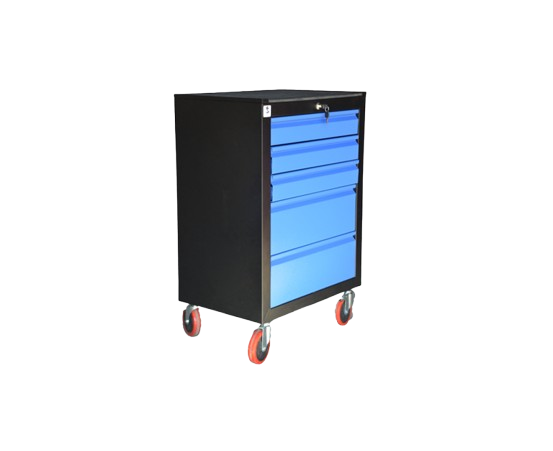

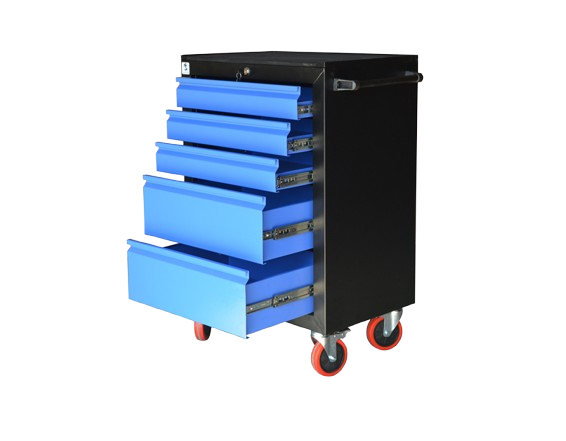

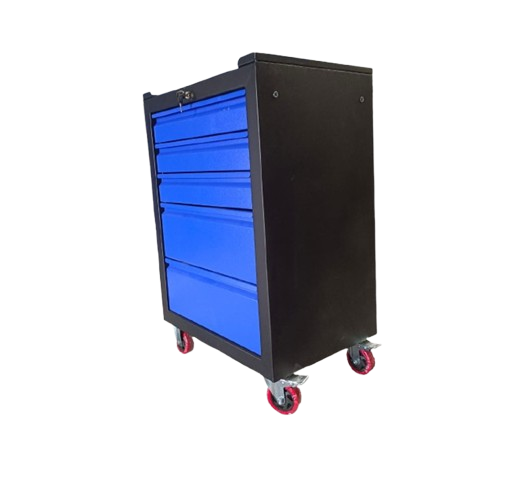

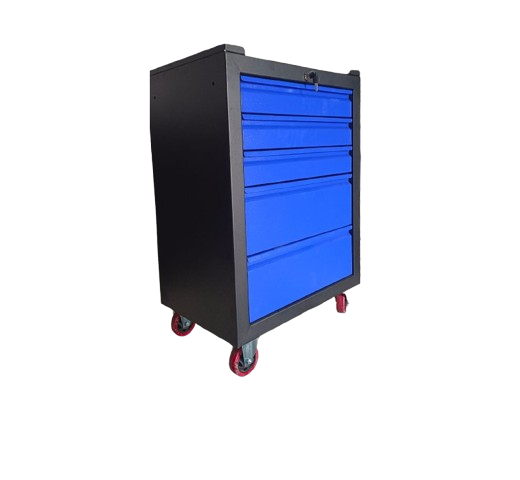

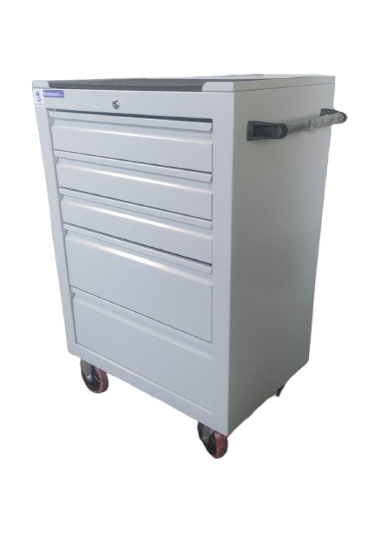

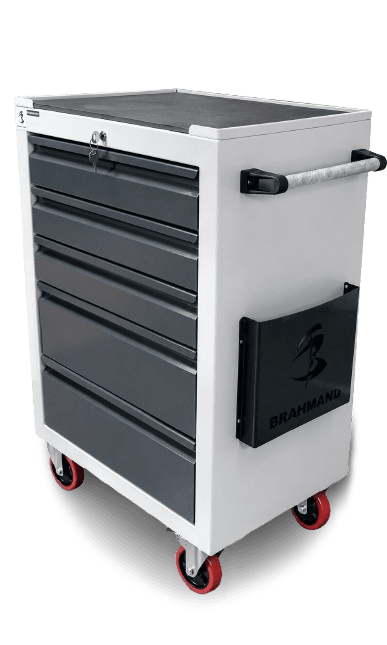

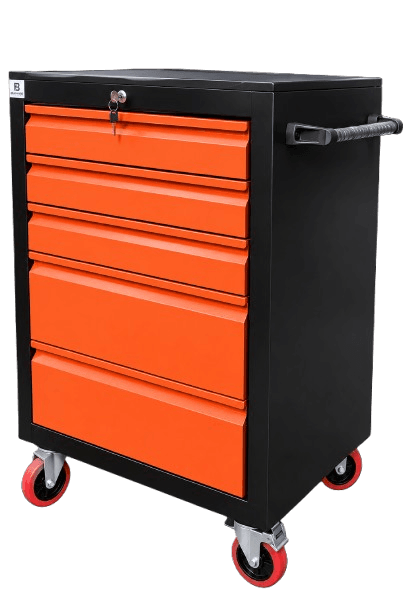

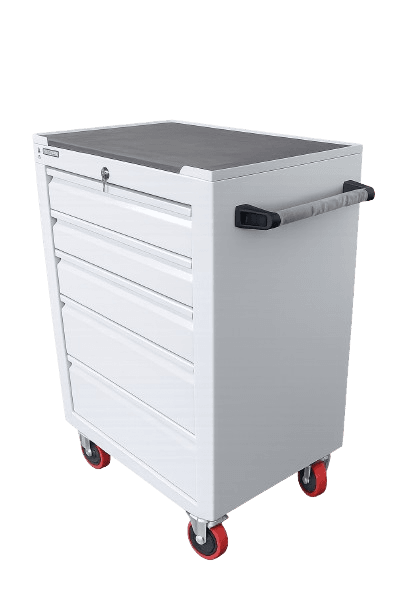

Tool Chest 5 Drawer

30,600.00

Overall Dimensions :

  • Length : 660 mm
  • Width : 450 mm
  • Height : 988 mm
  • Product Weight : 68.0 Kg (Approx.)
  • Load bearing capacity : 350 Kg UDL
  • Drawer sizes :
    524 (L) x 423 (W) x 100 (H) = 3 Nos.
    524 (L) x 423 (W) x 200 (H) = 2 Nos.
  • Drawer LBC : 40 Kg UDL each.

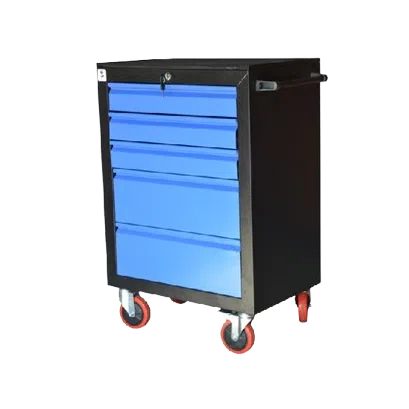

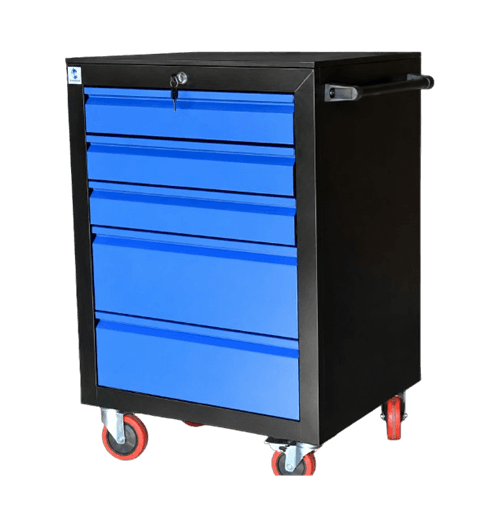

  • Colour : Available in Dual colour Black Matt & VIP Blue structure.

Product Code :- BTC-5A

Features Tool Chest 5 Drawer :-

  • Structure : Prime quality CRCA sheet used.
  • All sheet metal cutting work done by Precise laser cutting and Bending process by 5 axis CNC Press Brake.
  • Finish : Dual colour Epoxy powder coating with Seven tank processed Phosphating treatment.
  • Double wall structure for increase strength of drawer assembly.

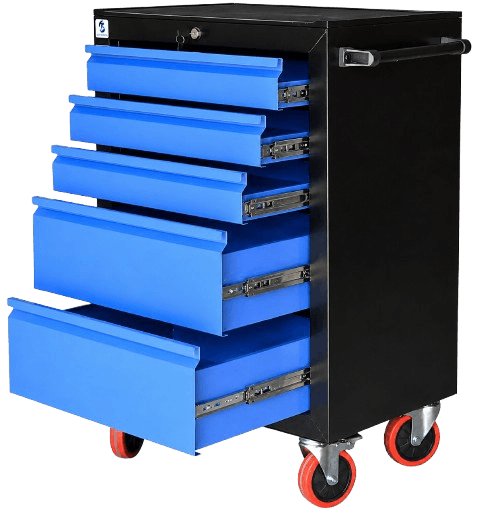

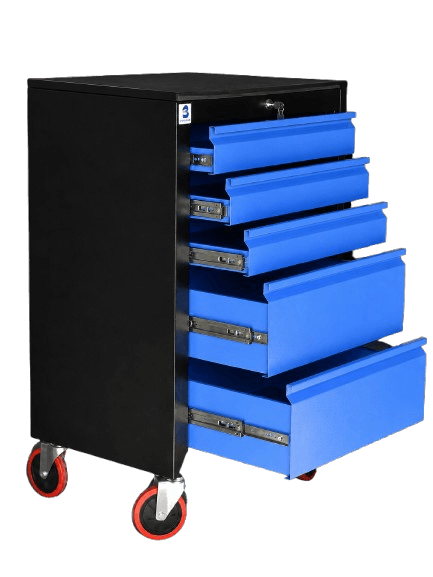

  • Heavy duty Hettich brand 45 Kg telescopic slide runner used.
  • Central locking system. All drawer lock with single key.
  • Wheel : Heavy duty 125 mm X 32 mm PU castors 2 Nos. Swivel & 2 Nos. Swivel with Brake..
  • 660mm(L) X 450 mm(W) surface area with 5 mm thick rubber foam on top for tools and instrument placing.
