A-Type Trolley

By /
Tool Trolley

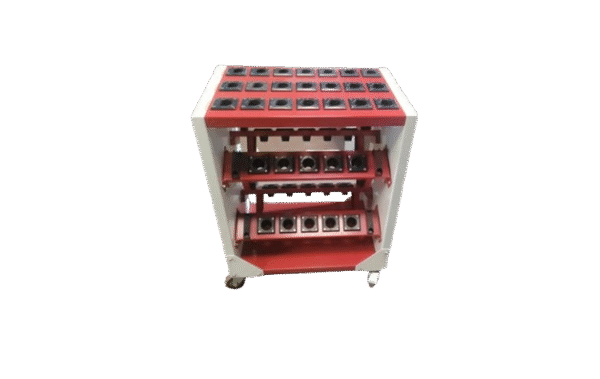

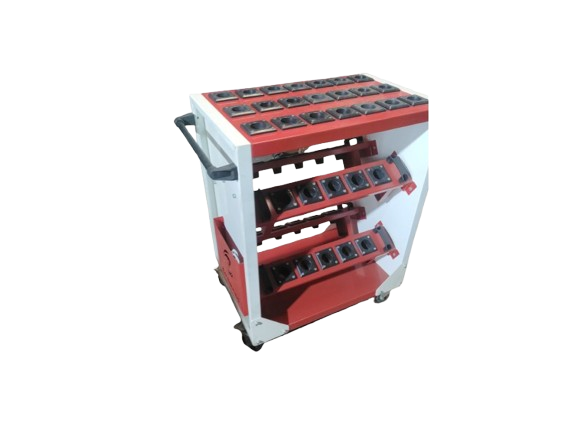

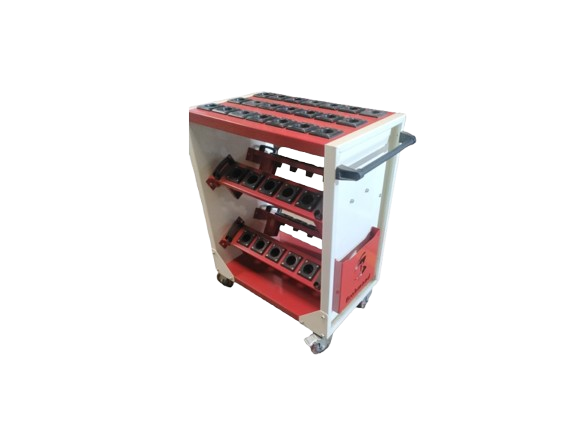

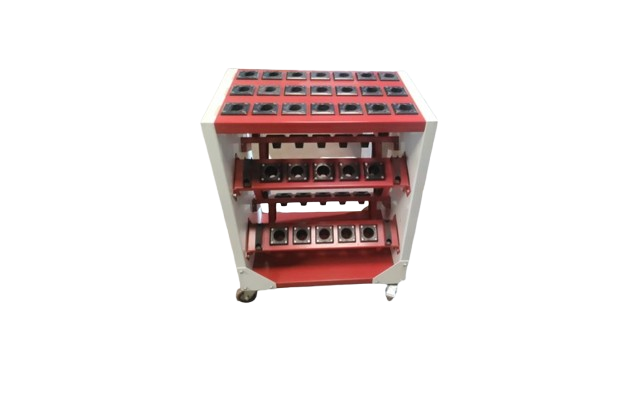

A-Type Trolley

₹27,000.00

Overall Dimensions :-

  • Length : 1010 mm
  • Depth: 450 mm
  • Height : 990 mm
  • Product Weight : 35 Kg (Approx.)
  • Load bearing capacity : 250 Kg UDL
  • Holder accommodated :
    BT-30 = 38 Nos.
    BT-40 = 38 Nos.
    BT-50 = 24 Nos.
    (HSK A-50 HSKA-63,HSK A-100 also available)
  • Colour :- Available in Dual colour Black Matt & VIP Blue structure.

Product Code :- BST-4

Category:

Features Of A-Type Trolley :-

  • Structure : Prime quality CRCA sheet used.
  • All sheet metal cutting work done by Precise laser cutting and Bending process by 5 axis CNC Press Brake.
  • Finish : Dual colour Epoxy powder coating with Seven tank processed Phosphating treatment.
  • Wheel : Heavy duty 125 mm X 32 mm PU castors 2 Nos. Swivel & 2 Nos. Swivel with Brake.
  • Holder Cup : High quality Nylon cup used for longer life with life time service support.
  • 4 Nos. of removable tool holder panel for movement of specific tools for programmer.
  • 450mm X 200mm front tray with rubber foam for placing tools.
  • 450mm X 285 mm back tray with rubber foam for safely placing Gauges &Instruments.
  • 2 Nos.640mm X 450 mm surface area for placing other tools or Job etc.
  • Provide 29’angle to all inclined panel for easy & safe access of toolholder.
  • Paper pocket for drawing and documents.
  • Rigid and sturdy Construction.
