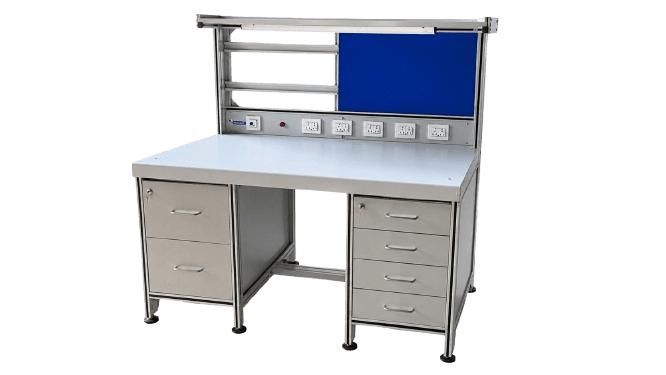

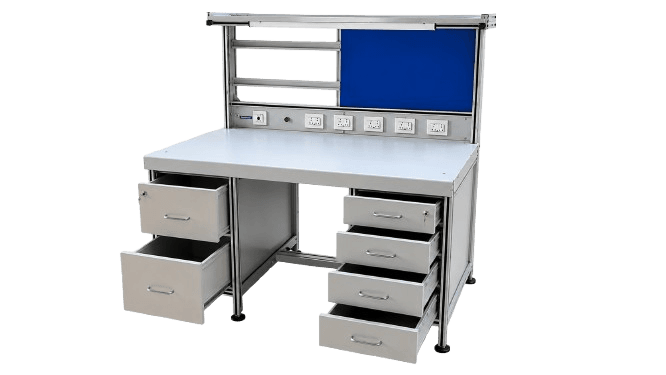

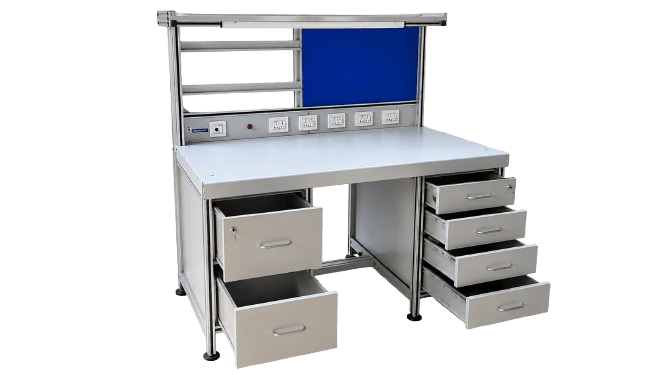

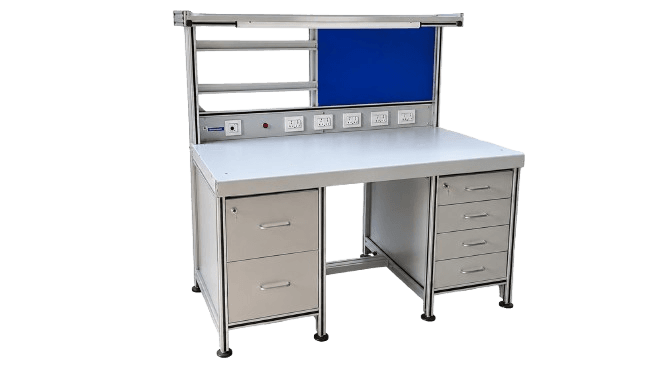

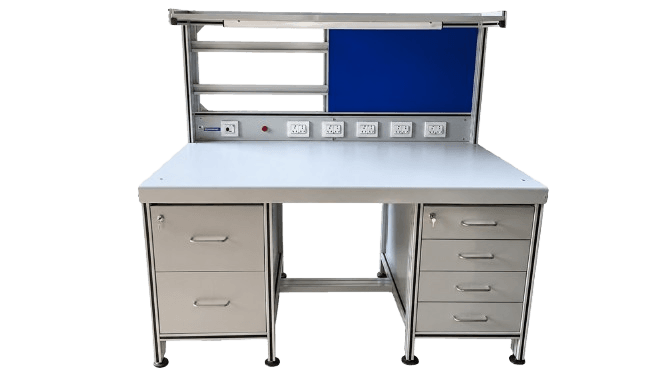

Aluminium Base Workbench

108,000.00

Overall Dimensions :-

  • Length :- 2000 mm
  • Width :- 750 mm
  • Height :- 2200 mm
  • Product Weight :- 150 Kg (Approx.)
  • Work Top :– 2000 X 750 X 46 mm
  • Load Bearing Capacity: 1000 kg UDL
  • Number Of Drawer: 6
    • Drawer L: 700 W: 450 H : 75 ( 4Nos)
    • Drawer L: 700 W: 450 H : 125 ( 2 Nos)
  • Load Bearing Capacity: 45 kg UDL

Product Code :- BEW-2

Category:

Features Of Aluminium Base Workbench :-

  • Structure : Prime quality CRCA sheet used.
  • All cutting work done by Precise laser cutting and Bending process by 5 axis CNC Press Brake.
  • Bin Rail for Hanging Standard FBO Bin.
  • Two adjustable Level for Storage.
  • Provision for work light .
  • Adjustable Screw.
  • Rigid and Attractive Design and Color.
  • Roll Bearing Slide for Smooth Working.
  • Hettich Make Telescopic Slides .
  • Pin Up Board for Display of Drawing and Instruction.
  • Colour :- Available in Different Colour.
  • Used for Electrical, Electronic and PCB assembly
